Zig-zags and Locking Profiles are indispensable and important materials in film greenhouses, and are products specifically used to fix greenhouse films. This is a major important product in the greenhouse industry that facilitates the fixation of thin films.

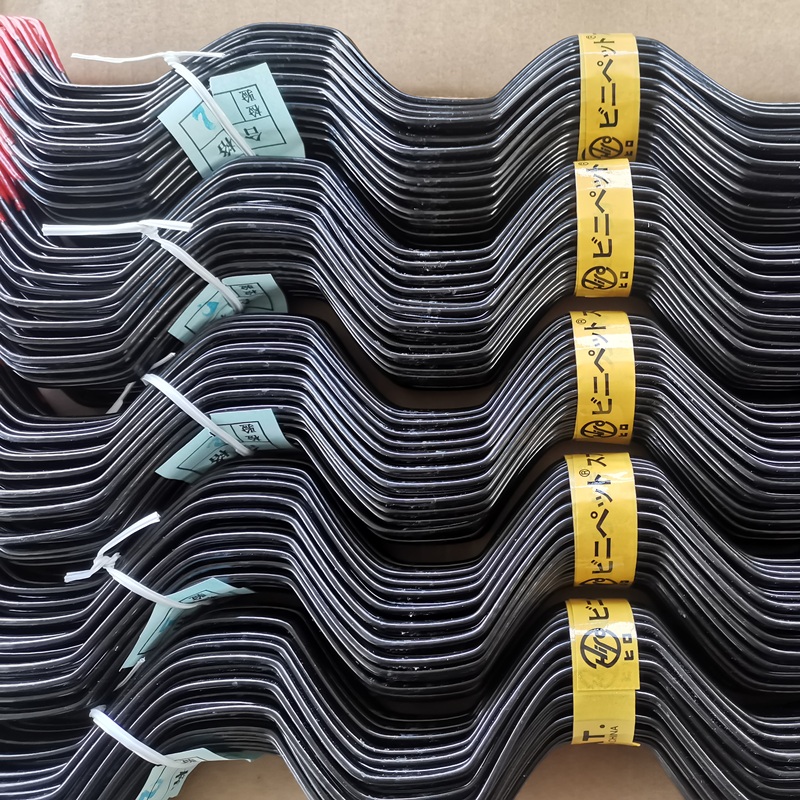

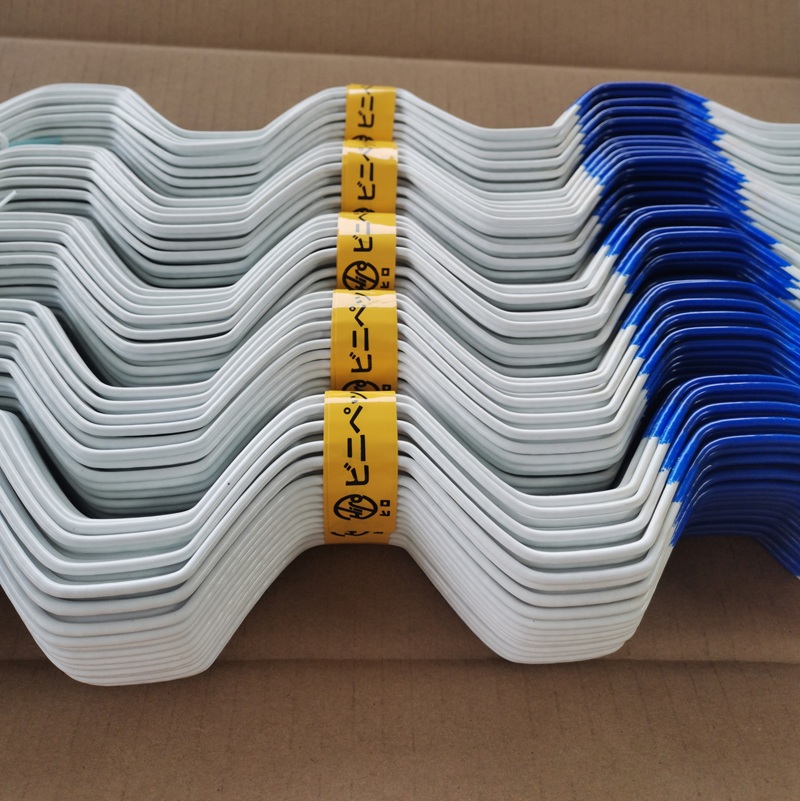

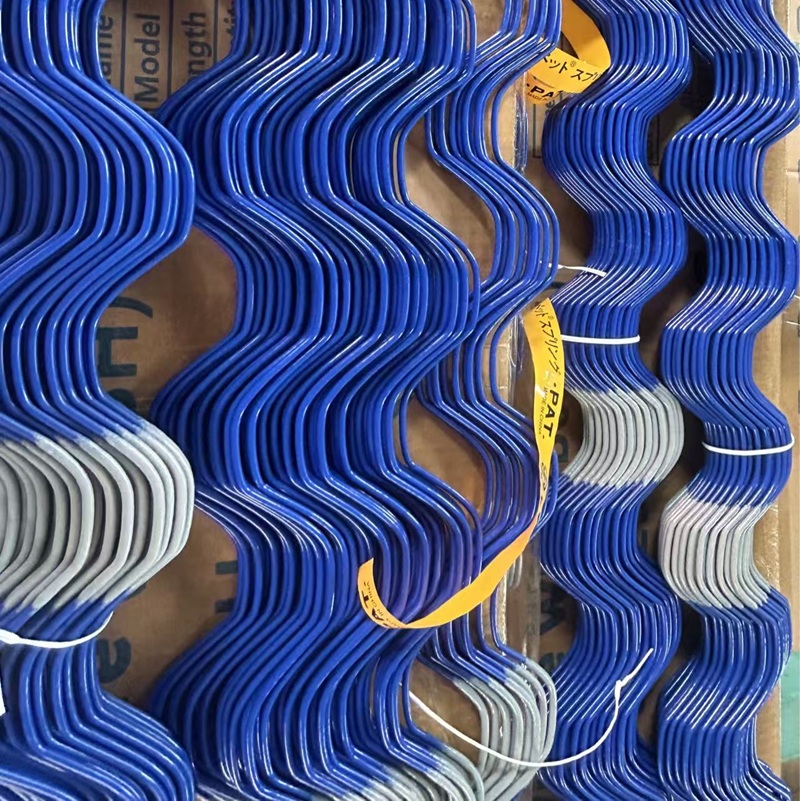

Zig-zags wires
The use of high-quality steel wire gives them strong resistance to elastic deformation and stronger film fixing ability.
The structure design of zigzags focuses on the optimal angle design, and its elastic deformation force is stronger, which improves the film fixing ability.

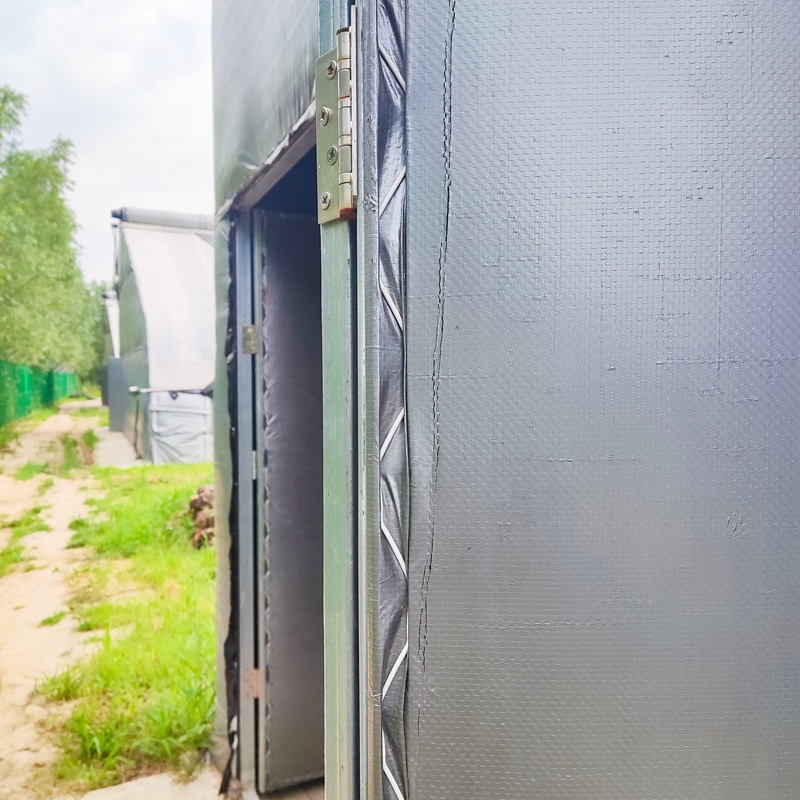

ZigZags can not only be used to fix thin films, but also to fix sunshade nets, etc. It can also be used for fixing wire mesh and thin materials for wind and noise prevention in temporary buildings.
The plastic powder material and powder coating thickness of Zigzags have strict process requirements.
| SKU | Material | Galvanization | Color | Photo |
| 10001 | 2.0mm Steel Wire | No | Black |  |
| 10002 | 2.0mm Steel Wire | No | White |  |
| 10003 | 2.0mm Steel Wire | Yes | Black |  |
| 10004 | 2.0mm Steel Wire | Yes | White |  |
| 10005 | 2.3mm Steel Wire | No | Blue |  |
| 10006 | 2.3mm Steel Wire | No | White |  |
| 10007 | 2.3mm Steel Wire | Yes | Blue |  |
| 10008 | 2.3mm Steel Wire | Yes | White |  |
| 10009 | 2.2mm Stainless Steel Wire | – | – |

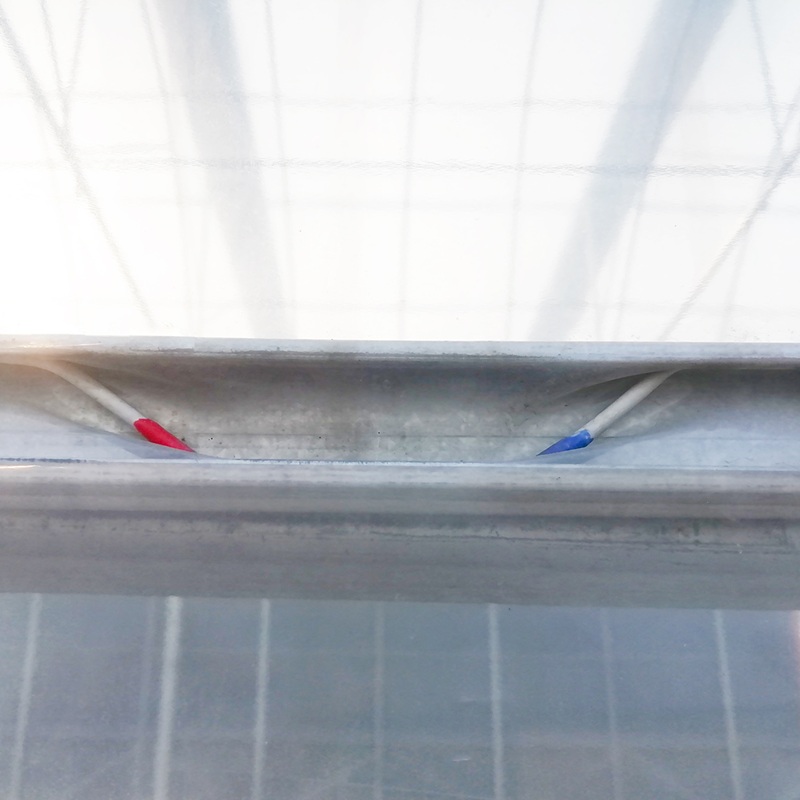

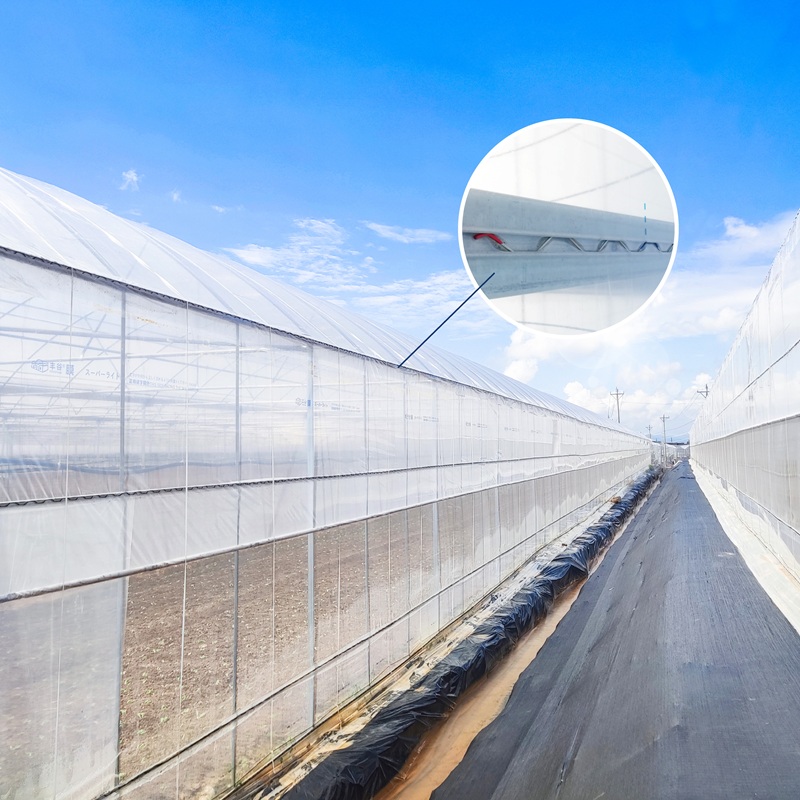

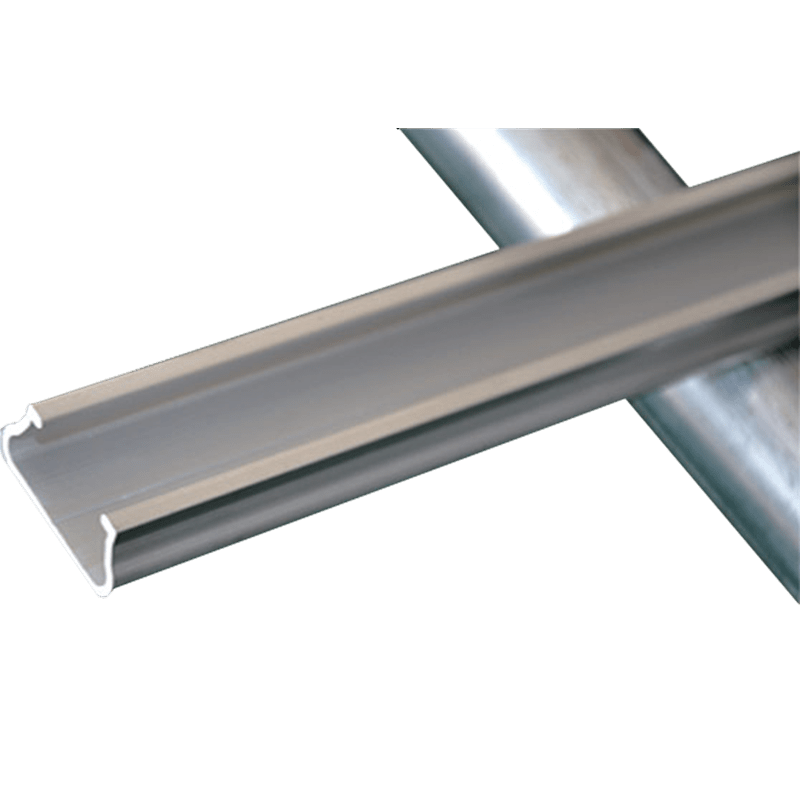

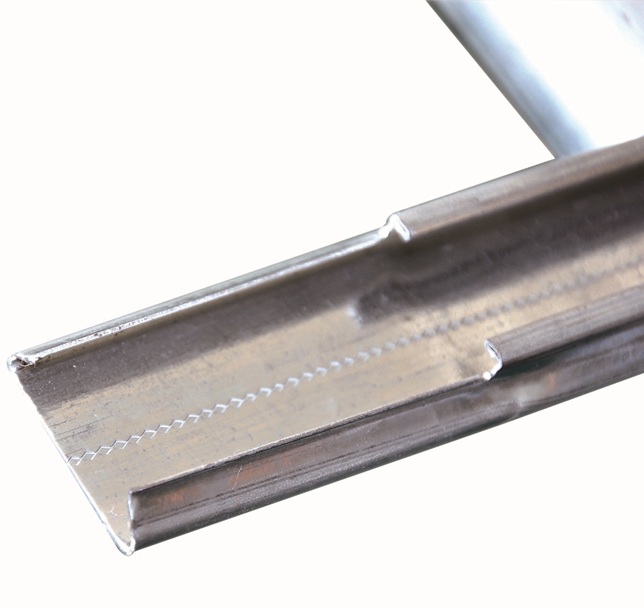

Steel locking profiles
When a strong wind acts on the film, it transmits force to the locking profiles. When the profiles is used in conjunction with the zigzags, the greater the wind load, the greater the downward force of the profiles, making it less likely to collapse. Conversely, in ordinary and U-shaped profiles, the greater the upward force on the zigzags, the more likely it is to break out.
Steel locking profiles are available from 2meters~ 6meters. Swaged end process and punch holes process are also optional choices. Please contact us for more details.
| SKU | Insertable zigzags | Thickness | Galvanization |
| 11001 | 2 | 0.7mm | zinc 120g/㎡ |
| 11002 | 2 | 0.7mm | zinc 275g/㎡ |
| 11003 | 3 | 0.9mm | zinc 275g/㎡ |
| 11004 | 3 | 0.8mm | zma 80g/㎡ |
| 11005 | 3 | 0.8mm | zma 120g/㎡ |
| 11006 | 3 | 0.8mm | zma 275g/㎡ |

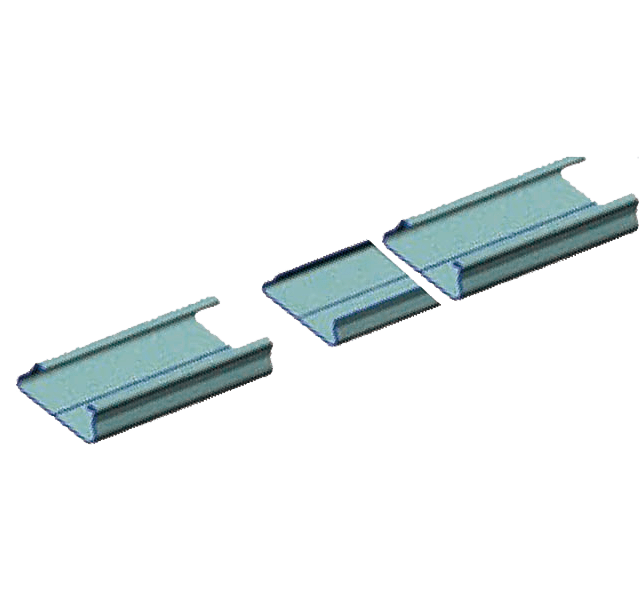

How to connect 2 pcs of locking profiles？
-Two pcs of profiles can be connected via swaged end process or via a connect clips.
| SKU | models | application | Galvanization |
| 11011 | Profiles connect clips | for 0.7mm profiles | zinc 275g/㎡ |
| 11012 | Profiles connect clips | for 0.9mm profiles | zinc 275g/㎡ |

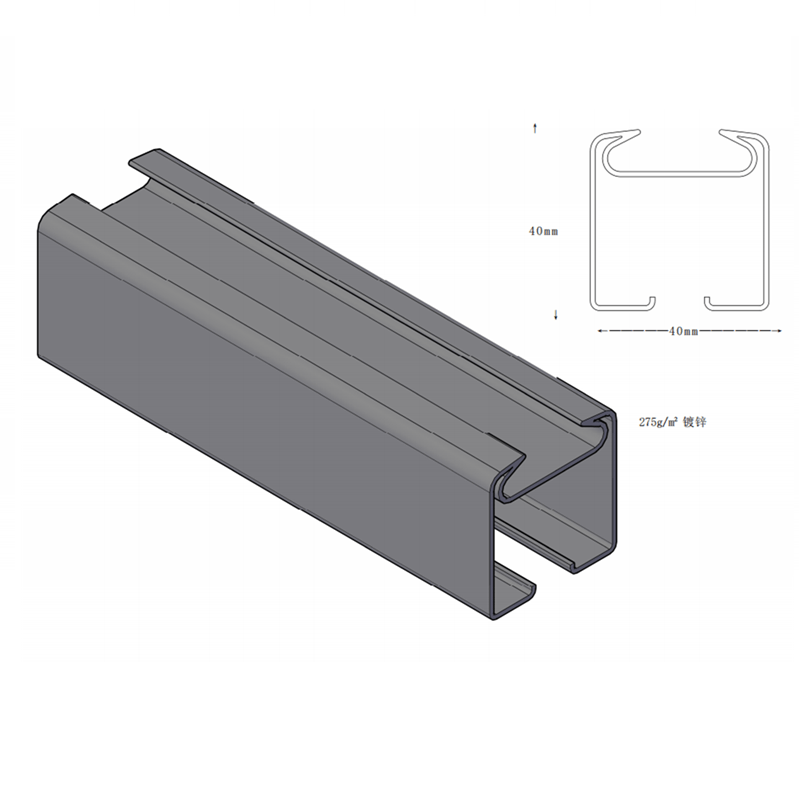

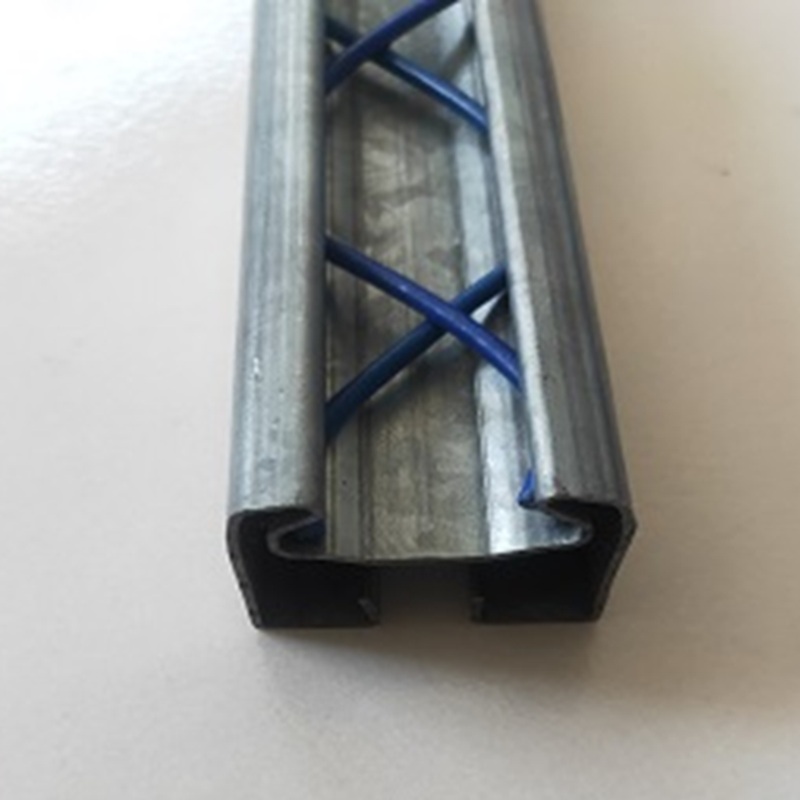

Purlin profiles
Price is always an important consideration when building a greenhouse. When you don’t want to add extra profiles to your frame, you can consider our purlin profiles. As a two in one solution, it saves you a lot of costs.
| SKU | MODELS | SIZE | GALVANIZATION |
| 11021 | purlin profiles | 40x40mm | zinc 275g/㎡ |

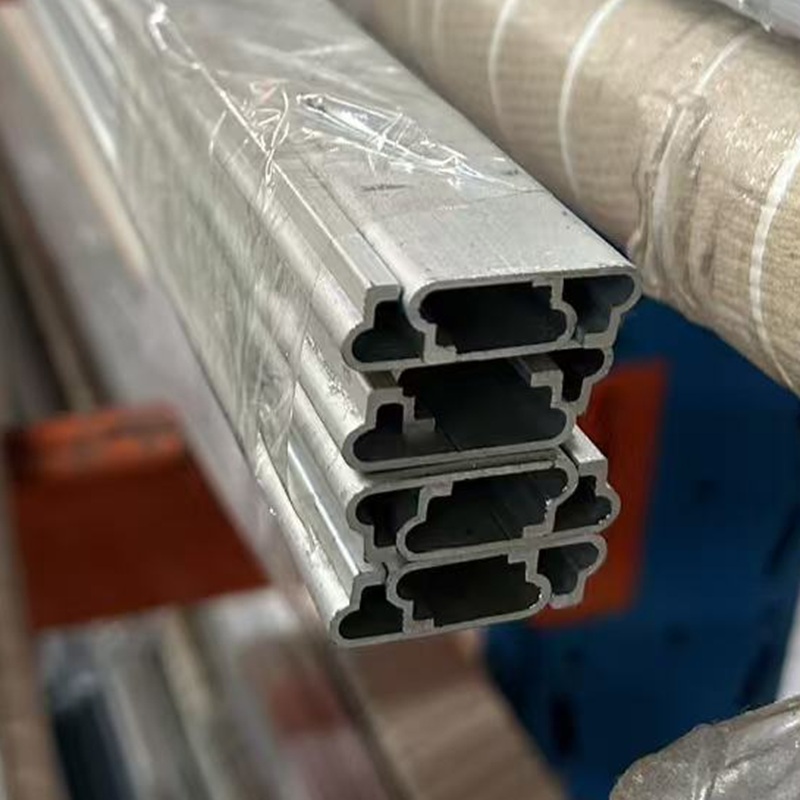

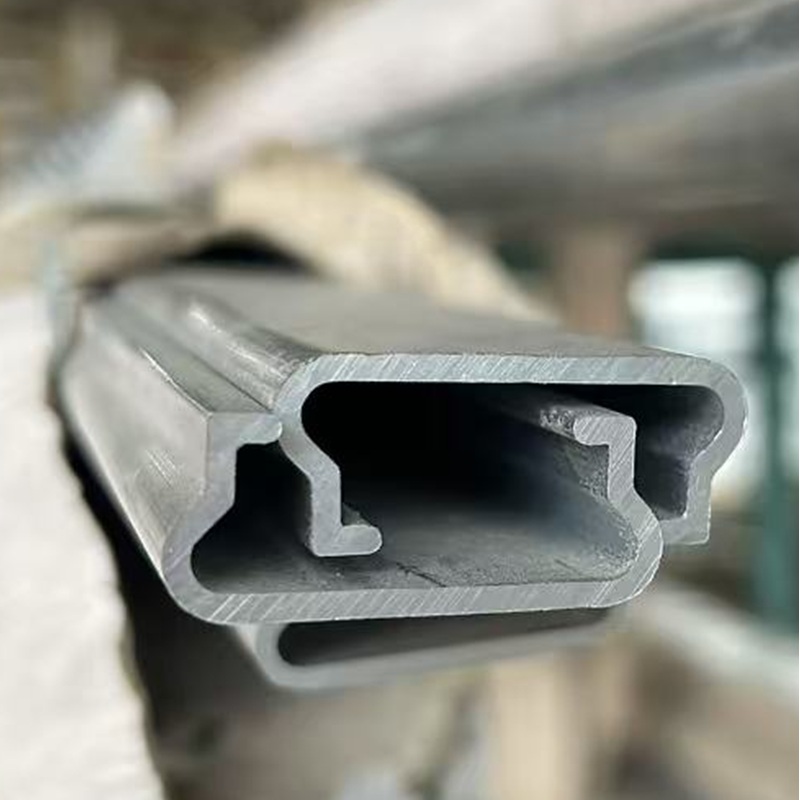

Aluminum profiles
Aluminum profiles have the characteristics of light weight and corrosion resistance. When you need high-end fixed film products and hope for 20 years of maintenance free, aluminum profiles are your best choice.
What is differences of original / anodizing on surface for aluminum profiles?
-Anodizing creates a dense hard oxide film firmly attached to aluminum, greatly improving scratch and corrosion resistance. Unlike bare aluminum prone to tarnish, stains and rust in humid or salty environments, sealed anodic surfaces resist fingerprints, stay easy to clean and retain stable color outdoors. They also offer slight insulation, customizable hues and much longer service life for aluminum profiles.
| SKU | thickness | material | surface treatment |
| 11031 | 0.8mm | T6063 | original |
| 11032 | 0.8mm | T6063 | Anodizing |
| 11033 | 1.0mm | T6063 | original |
| 11034 | 1.0mm | T6063 | Anodizing |
| 11035 | 1.2mm | T6063 | original |
| 11036 | 1.2mm | T6063 | Anodizing |
| 11037 | 1.5mm | T6063 | original |
| 11038 | 1.5mm | T6063 | Anodizing |
| 11039 | 1.8mm | T6063 | original |
| 11040 | 1.8mm | T6063 | Anodizing |

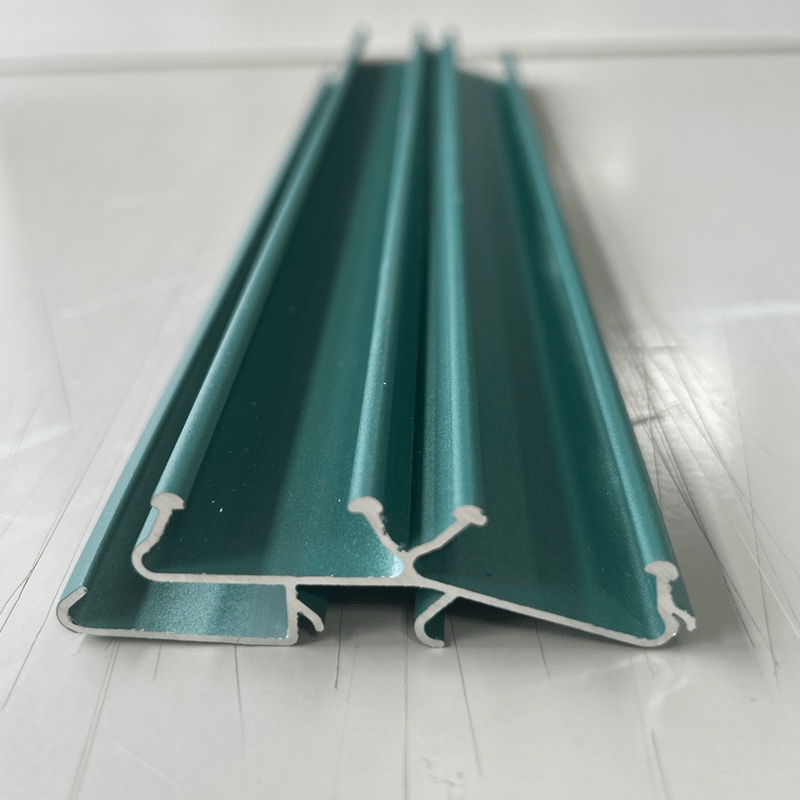

Windows profiles
When you want to use card slots to manufacture greenhouse doors or windows, please choose the following high-quality profiles
| SKU | models | material | surface treatment |

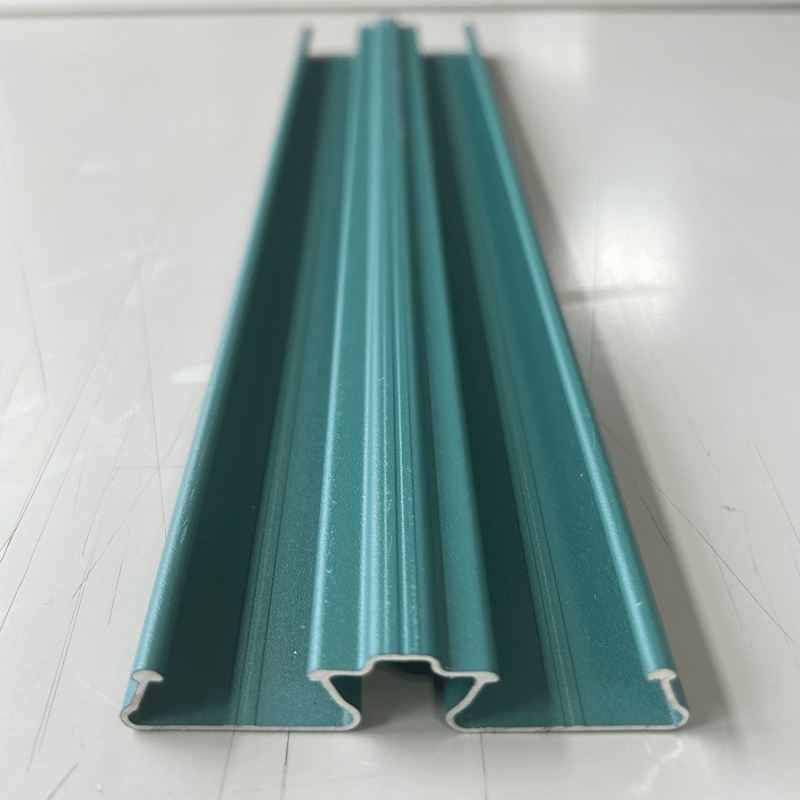

| 11051 | windows double profiles a | T6063 | coated |

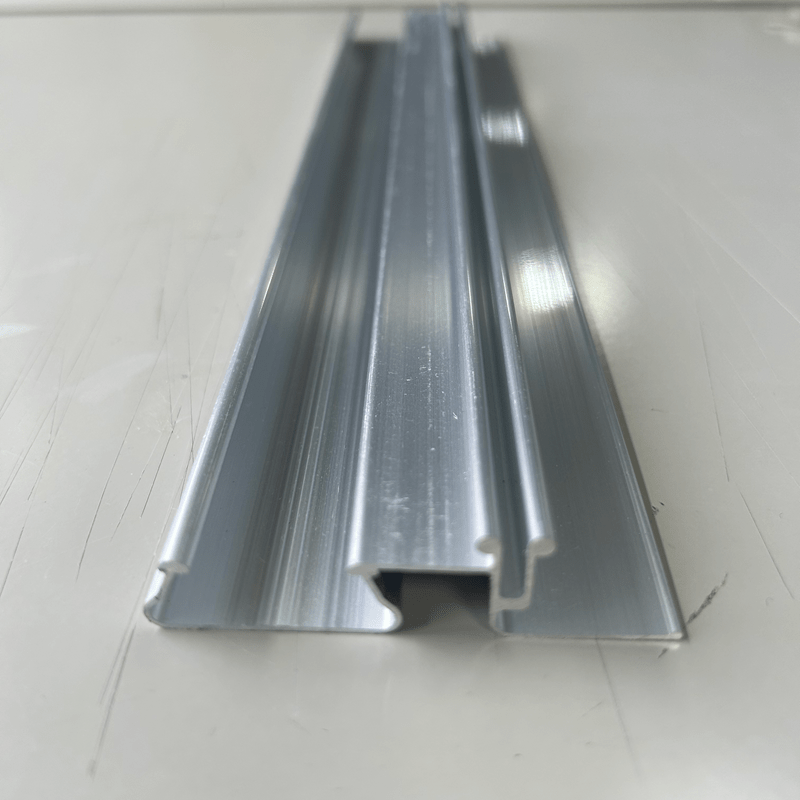

| 11052 | windows profiles b | T6063 | Anodizing |

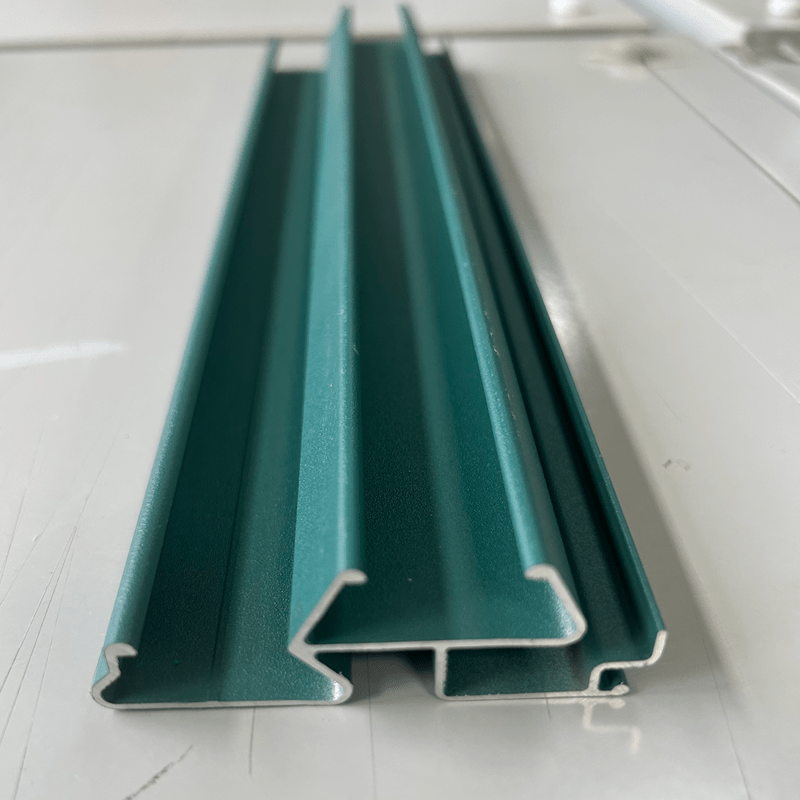

| 11053 | windows profiles c | T6063 | coated |
| 11054 | windows profiles d | T6063 | coated |

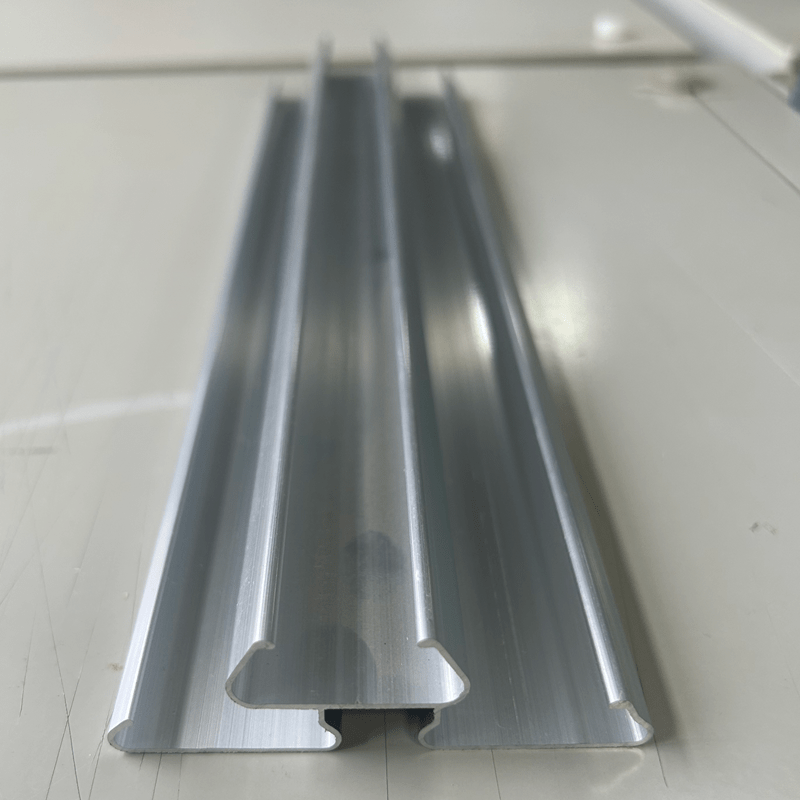

| 11055 | windows profiles e | T6063 | Anodizing |

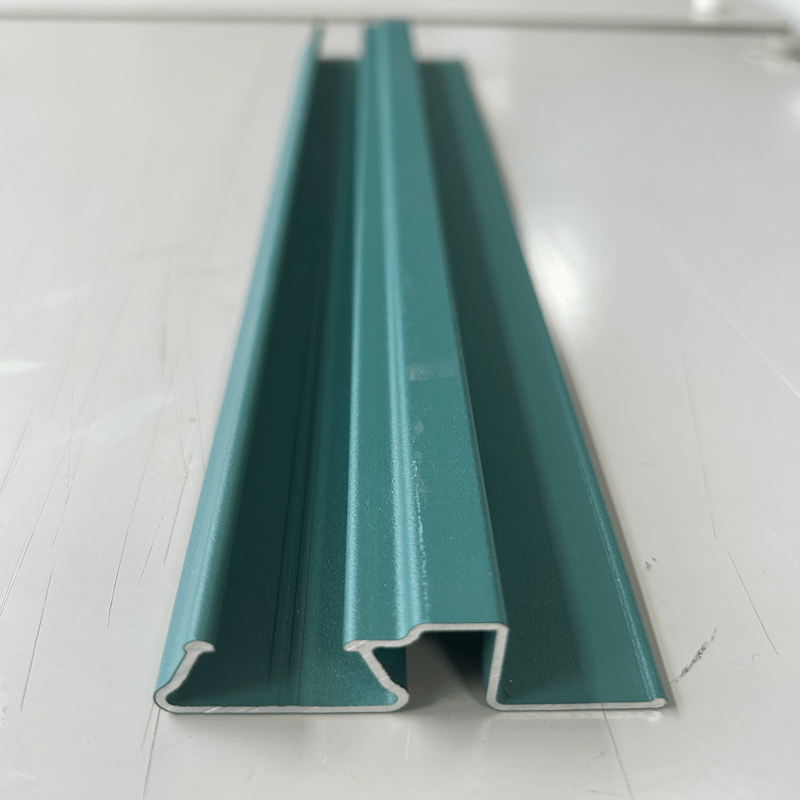

| 11056 | windows profiles c | T6063 | coated |
